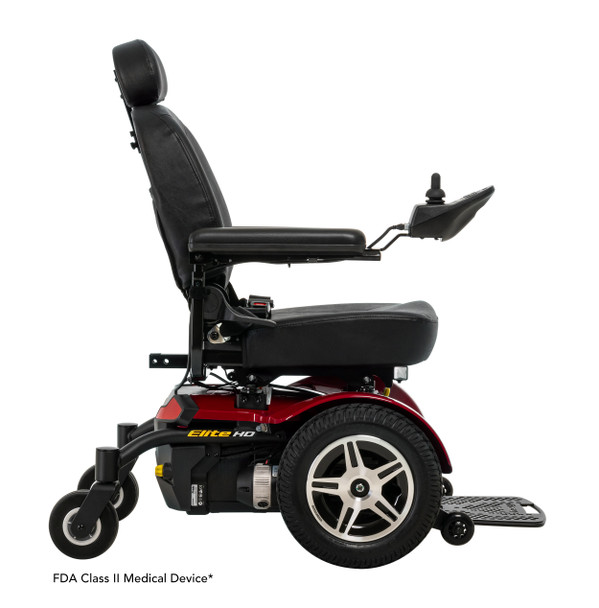

Jazzy Elite HD - JEliteHD
Financing Available: JEliteHD
Key Features:
The Jazzy® Elite HD offers heavy-duty construction, a 450 lbs. weight capacity, and excellent performance in a stylish, highly maneuverable package. Updated version of the 614HD but with front wheel drive and wider foot plate.
)
Product Description
The Jazzy® Elite HD offers heavy-duty construction, a 450 lbs. weight capacity, and excellent performance in a stylish, highly maneuverable package.
Features:
- Enhanced 300-450 lbs. weight capacity
- Front-wheel drive design for excellent maneuverability
- 14" knobby tires and optimum weight distribution provide superior traction
- Larger foot platform
- 60 amp controller
- Extended 13-month limited warranty
- “FDA Class II Medical Device*” - Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments
- Click Here for Brochure
Specs:
| Model | Jazzy Elite HD |
| Weight Capacity | 450 lbs.* |
| Turning Radius | 24" |
| Width | 24.25" |
| Length | 35.5" |
| Maximum Speed* | Up to 4 mph |
| Ground Clearance | 3" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" solid |
| Rear Wheels | 6" Solid casters |
| Drivetrain | Two-motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seating | 24"W x 24"D |
| High-Back Seat-to-Floor Range | 20" - 22" |
| Synergy Seating | 24"W x 24"D |
| Synergy Seat-to-Floor Range | 15.75" - 17.75" |
| Standard Electronics | 60A, Dynamic Shark |
| Battery Size | 12 volt, NF-22 |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range* | Up to 9.8 miles |
| Battery Weight | 37 lbs. each |
| Base Weight | 98.5 lbs. |
| Standard Seat Weight | 51.5 lbs. (high-back) |
| Standard Seat Size | 20" x 18"-20" |
| Medicare Code Coverage | Group 2: Heavy Duty (K0824/K0825) |
| Color Options | Jazzy Red or Jazzy Blue |
| Warranty | 5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors |
| Notes | *Maximum weight capacity is reduced to 400 lbs. (181 kg) on 18" deep seat configurations. |
Warranty Information
5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
Other Details
Brand:
Jazzy
Weight Capacity:
450lbs
Max Speed:
4 mph
Turning Radius:
24"
Base Weight:
89lbs
Seat Weight:
51.5lbs
Price Range:
$3500 - $4000
Overall Weight:
224lbs
Overall Weight Range:
200lbs - 300lbs
Weight Capacity Range:
300lbs - 450lbs
Seat Size:
18", 20", 22", or 24"
Drive Type:
Front Wheel Drive
