Description

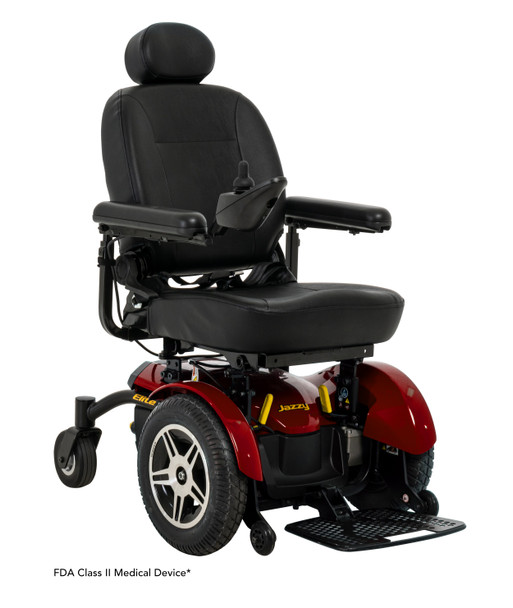

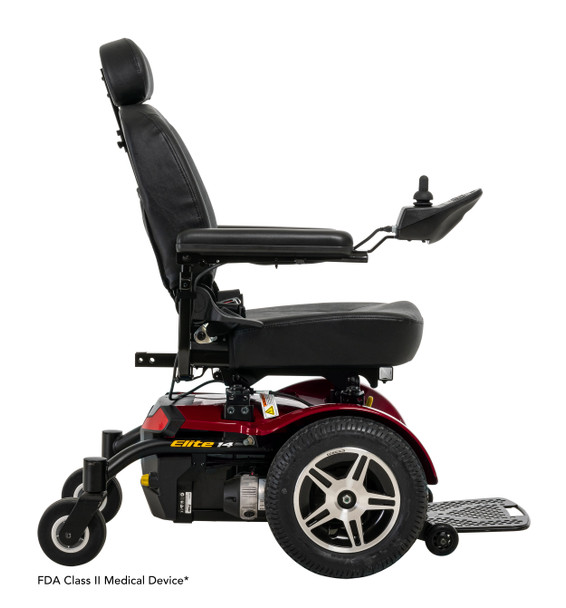

The Jazzy® Elite 14 offers a 300 lbs. weight capacity and excellent performance in a stylish, highly maneuverable package.
Features:
- 300 lbs. weight capacity
- Front-wheel drive design for excellent maneuverability
- 14" knobby tires and optimum weight distribution provide superior traction
- Red or blue color-through shroud
- 50 amp controller
- Extended 13-month limited warranty
- “FDA Class II Medical Device*” - Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments
- Click Here for Brochure
Specs:
| Model | Jazzy Elite 14 |
| Weight Capacity | 300 lbs. |
| Turning Radius | 24" |
| Width | 24.25" |
| Length | 35.5" |
| Maximum Speed* | Up to 4 mph |
| Ground Clearance | 3" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two-motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seating | 20"W x 20"D (max. dimensions) |
| High-Back Seat-to-Floor Range | 20" - 22" |
| Specialty Seating | 20"W x 20"D (max. dimensions) |
| Specialty Seat-to-Floor Range | 16.25" - 18.25" |
| Synergy Seating | 20"W x 20"D (max. dimensions) |
| Synergy Seat-to-Floor Range | 15.75" - 17.75" |
| Standard Electronics | 50A, Dynamic Shark |
| Battery Size | 12 volt, NF-22 (2 required) |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range* | Up to 9.8 miles |
| Battery Weight | 37 lbs. each |
| Base Weight | 98.5 lbs |
| Standard Seat Weight | 51.5 lbs. (high-back) |
| Standard Seat Size | 20"-20" x 18" |
| Medicare Code Coverage | Group 2: Standard (K0822/K0823) |
| Color Options | Jazzy Red or Jazzy Blue |
| Warranty | 5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors |
Details
Weight Capacity: |
300lbs |
Length: |
35.5" |
Width: |
24.25" |
Drive Range: |
Up to 9.8 miles |
Max Speed: |
4 MPH |
Turning Radius: |
24" |
Heaviest Piece: |
98.5lbs |
Overall Weight: |
224lbs |
Seat Size: |
20" x 20" |
Disassembles / Folds: |
No |
Price Range: |
$3500 - $4000 |
Drive Type: |
Front Wheel Drive |
User Weight: |
251lbs - 350lbs |
Warranty
5-year limited warranty on frame;
13-month limited warranty on electronics;
13-month limited warranty on drive motors
