Description

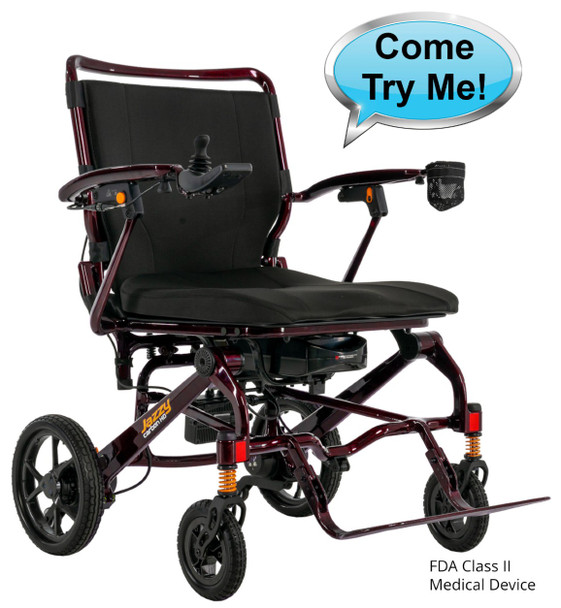

Weighing just 32 lbs. and boasting a 400-lb. weight capacity, the Jazzy Carbon HD is a game-changing heavy-duty travel power wheelchair. It folds and locks into position in mere seconds and will keep you comfortable with a padded seat back and extra-wide foot platform.
Easy to fold, easy to lift, easy to transport.
The Jazzy® Carbon HD folds in just a few seconds and locks securely into position. It is also one of the lightest models in the Pride® Mobility fleet and engineered for convenient storage and transport. When it comes time to ride again, it is just as easy to unfold and go.
Heavy-duty mobility
meets lightweight mobility.
The wait is over for a travel friendly, heavy-duty, power wheelchair built for portability. The Jazzy® Carbon HD offers a 400-lb. weight capacity, weighs 32.2 lbs. without the battery, has a durable carbon fiber frame, and gives you a greater level of independence throughout your travels.
Your comfort is paramount.
The roomy 20 x 20” seat, adjustable padded seat back, removable cushion, and extra-wide adjustable foot platform are designed for your comfort. It also has front and rear suspension providing a smooth ride over varied terrain. Jazzy® is known for world-class quality, a commitment to the industry’s most rigorous testing standards, and proven performance over three decades. You will get all of that with the Jazzy® Carbon HD! Travel worry-free and experience the best in lightweight portability!

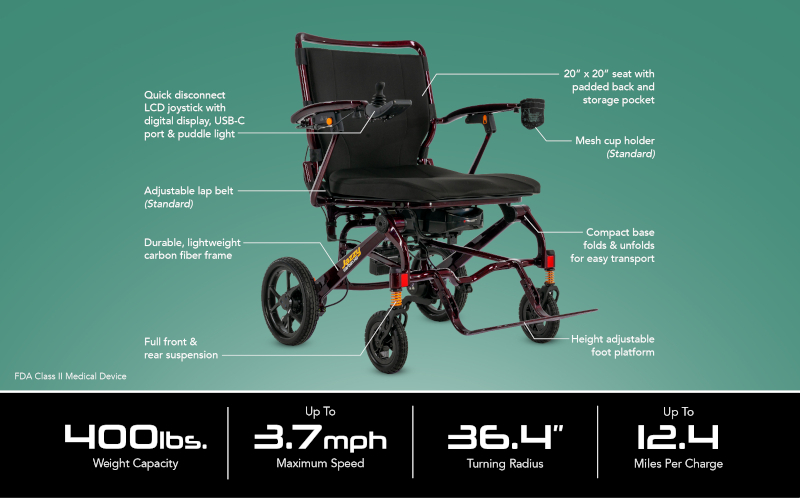

Jazzy® CarbonHD Features:
- Unit weighs 32.2 lbs. without the battery
- 400 lb. weight capacity
- Durable carbon fiber frame
- Front and rear suspension
- Top speed of up to 3.7 mph
- Battery range of up to 12.4 miles
- 20" x 20" seat
- Easy fold design that locks into folded position
- Folded dimensions: 31.3” L x 26.4” W x 13 H
- Flip up lightweight carbon fiber arms
- Padded seat back with removable cushion
- Extra-wide adjustable foot platform 17.25” W x 5.9” D
- 20 Ah lithium battery (standard)
- Storage pocket on back of seat
- Quick disconnect LCD joystick with digital display, USB-C port & puddle light
- Mesh cup holder, cushion, and adjustable lap belt, (standard)
- Mesh cup holder, cushion, adjustable lap belt, and under-seat storage (Standard)
| CATEGORY | SPECIFICATION |
| Model | Jazzy® Carbon HD |
| Weight Capacity | 400 lbs. |
| Maximum Speed | Up to 3.7 mph |
| Ground Clearance | 1" at motor |
| Turning Radius | 36.4" |
| Overall Length | 36.81" |
| Overall Width | 26.4" |
| Suspension | Full Front and Rear Suspension |
| Front Wheels | 6.5" |
| Rear Wheels | 10.6" |
| Range per Charge | Up to 12.4 Miles per charge |
| Product Weight Without Batteries | 32.2 lbs. without batteries |
| Standard Seating | Dimensions: 20" x 20" seat |
| Seat sling with removable cushion | |
| Folded Dimensions | 31.3" L x 26.4" W x 13" H |
| Drivetrain/Motor Output | 24V 250W Brushless motors |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | Type: Lithium battery box |
| Size 20 Ah | |
| Battery Weight | 7.5 lbs. |
| Battery Charger | 2 Amp |
| HCPCS Codes | K0899 Power Mobility Device, not coded by DME PDAC. |
| Warranty | Frame: 5-year |
| Electronics: 1-year limited | |
| Drivetrain: 1-year limited | |
| Battery: 1-year limited |
Details
Weight Capacity: |
400lbs |
Max Speed: |
3.7 mph |
Turning Radius: |
36.4" |
Base Weight: |
32.2lbs |
Price Range: |
$3000 - $3500 |
Overall Weight: |
39.7lbs |
Seat Size: |
20" x 20" |
Drive Type: |
Rear Wheel Drive |
