Description

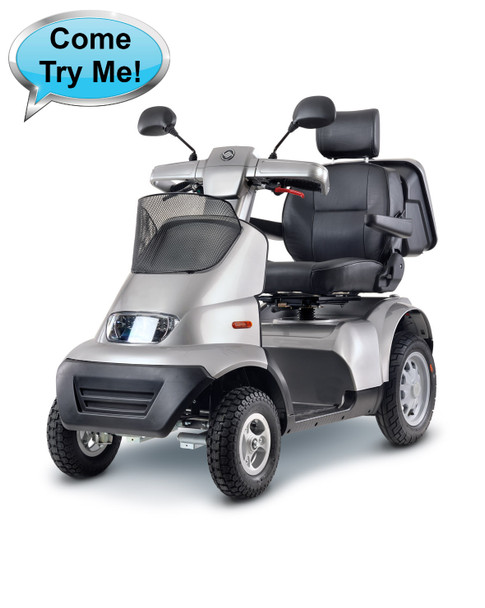

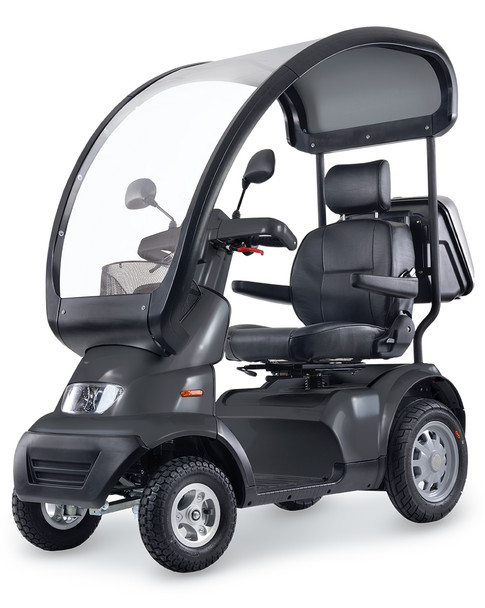

The Afiscooter Breeze S 4 is winner of the prestigious Red Dot Design Award. It offers an impressive driving range, an ergonomic design to make the ride more comfortable, a programmable electronic controller, LCD control screen and LED headlights. The Afiscooter Breeze S has a fully adjustable tiller and an optional canopy for protection from sun and light rain. The Afiscooter Breeze S has a fully adjustable orthopedic seat and a shock-absorbing steel frame. The 4 wheel model suspension and steering systems provide a pleasurable car-like driving experience on long distance trips.
- Due to this item's price, size, or uniqueness, we cannot accept returns on this product.
Specs:
|
Overall Length |
64.4 in / 1,635 mm |
|
Overall Width |
27 in / 680 mm |
|
Folded height(C) – for transport |
37.4 in / 950 mm |
|
Overall height without Canopy |
49 in / 1250 mm |
|
Overall Height with Canopy |
65 in / 1640 mm |
|
Ground Clearance |
5 in / 125 mm |
|
Total Weight |
364 lbs / 165 kg |
|
Load Capacity |
450 lbs / 200 kg |
|
Motor |
24V x 1400W x 4100 Rpm |
|
Mass of the heaviest part (H) |
51 lbs / 23 kg (Battery) |
|
Maximum Range |
28 miles |
|
Obstacle climbing |
4.5 in / 120 mm |
|
Maximum speed forward** |
9.3 Mph / 15.0 km/h |
|
Minimum braking distance from max speed*** |
9.8 ft / 3,000 mm (on the flat) |
| Front Wheels |
13" Pneumatic |
| Rear Wheels |
17" Pneumatic |
| Pneumatic Tyres |
4.10/3.50-6" |
|
Pressure of front tyres: |
25 psi / 1.7 bars |
|
Batteries (pair) |
12V x 73AH |
|
Charger |
8A Onboard |
|
Turning Radius |
86.6" |
|
Brakes |
Electromagnetic |
|
Seat plane angle |
4° |
|
Seat Dimension |
20" (W) x 18" (D) | 33" (W) x 18" (D) |
|
Footrest to seat distance (at |
17 in / 430 mm |
|
Backrest angle (P) |
90° - 105° |
| Backrest height | 25.5 in / 650 mm |
|
Armrest to seat distance (K) |
11.5 in / 292 mm |
|
Handrim diameter (S) |
1 in / 25 mm |
|
Charger for charging dry/gel acid battery |
24VDC max charge 8 Amp. |
|
Static stability downhill (T) |
>20" >20" |
|
Static stability uphill (V) |
>13" >20" |
|
Static stability sideways (X) |
>10" >14" |
|
Dynamic stability uphill |
>10" >10" |
Details
Weight Capacity: |
450lbs |
Length: |
71.6" |
Width: |
27" |
Drive Range: |
Up to 28 miles |
Max Speed: |
9.3 MPH |
Turning Radius: |
86.6" |
Heaviest Piece: |
51lbs |
Overall Weight: |
364lbs |
Seat Size: |
20" x 18" |
Disassembles / Folds: |
N/A |
Price Range: |
$4000 + |
Number of Wheels: |
4 |
User Weight: |
More than 400lbs. |
