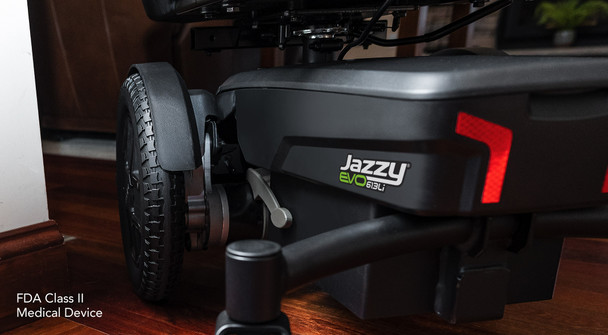

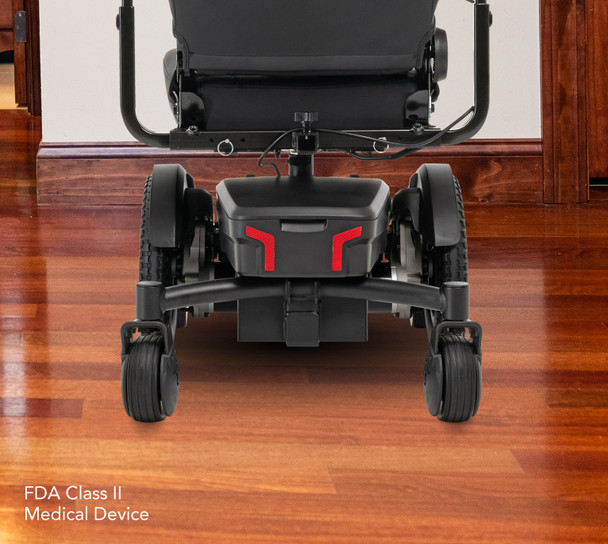

  • Rear
  • Side
  • Seat

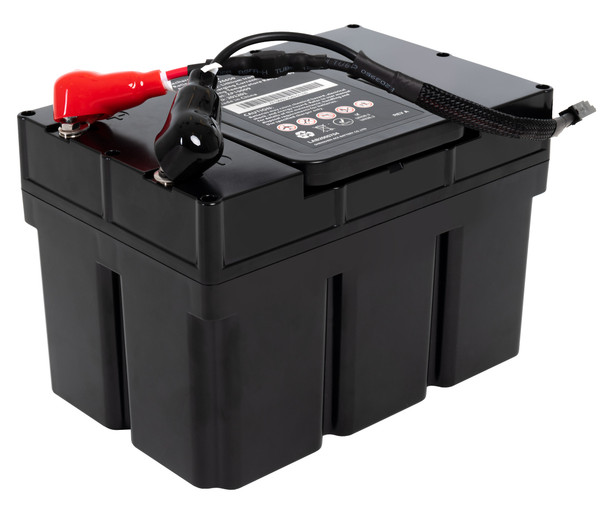

  • Available Lithium Battery
  • Joystick
  • Image 13
  • Image 14
  • Image 15
  • Image 16
  • Image 17
  • Image 18
  • Image 19
  • Image 20
  • Image 21

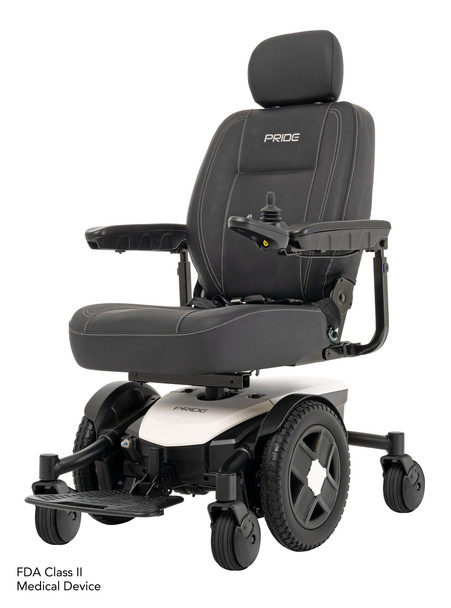

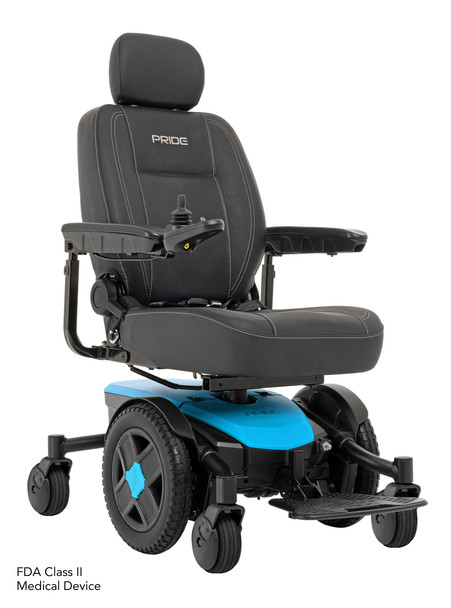

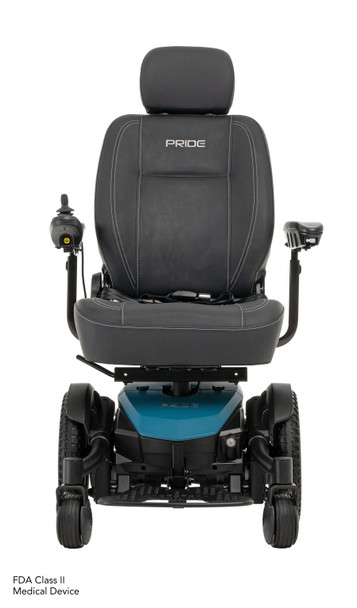

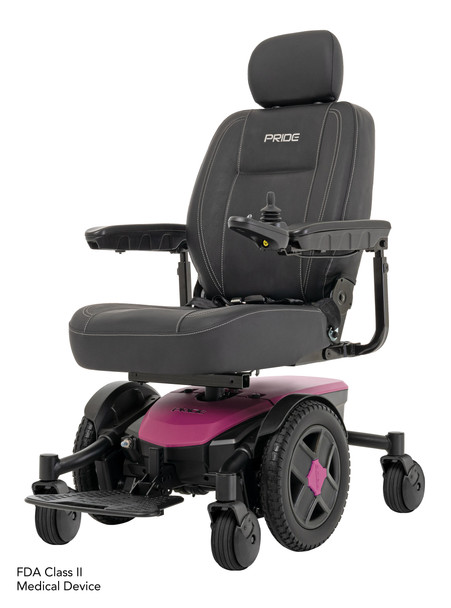

Jazzy EVO 613 / 613Li

Financing Available: EVO613

Key Features:
Jazzy® EVO 613 series is here and provides the freedom to navigate small spaces and tight corners indoors with a narrow base width of only 22”.

$5,359.00 $3,759.00
Quantity:

Product Description

Breaking down barriers with the Jazzy EVO 613 Power Chair series

The Jazzy® EVO 613 and Jazzy® EVO 613Li measure in at an impressive 22 inches wide at the base and offer a 22-inch turning radius. Not only is it one of the most powerful power wheelchairs on the market, but it’s also one of the narrowest and most maneuverable.

The Jazzy EVO 613 series gives you all the best that Pride has to offer with patented Active-Trac Suspension and exclusive Mid-Wheel 6® Technology that provide you with a smoother, stable ride.

And it does all that while pushing the limits of mileage and speed capabilities. A single charge can carry you up to 21 miles with the lithium battery, and top speeds up to 5.1 mph.

The Jazzy EVO 613 series of power wheelchairs with lithium batteries represent a philosophy we share here at Pride Mobility. If you’re not constantly improving, ever innovating, and pushing boundaries, you might as well fall behind.

The Jazzy EVO 613 stands on the shoulders of the industry-defining designs of its forebearers. Powerful lithium batteries last longer, charge faster and weigh less. The Jazzy EVO 613 has a futuristic design, with edgy lines and sharp colorways, giving you extra confidence.



It’s not just a mobility device – the Jazzy EVO 613 power wheelchair becomes a personal statement. Like us at Pride, you also believe that the pursuit of progress is a way of life.



Features:

  • 300 lb. weight capacity
  • Narrow base width of only 22"
  • Maximum speed up to 5.1 mph
  • 3" Ground clearance for
  • 13" solid drive tires
  • Per charge range up to 17 miles with U1 SLA batteries and up to 21 miles with lithium ion (200 lbs.)
  • Mid-wheel 6® Technology offers tight turning radius around doorways and corners
  • Pride's patented Active-Trac (ATX) Suspension ensures a smooth ride experience over uneven surfaces
  • Memory foam high-back seat with single seat post allows the user to swivel
  • Available depth-adjustable seat sizes: 16" W x16"-18" D, 18" W x 18"-20" D, 20" W x 18"-20"
  • Height, width, and angle adjustable armrests
  • Flip-up, height, angle, and depth adjustable foot platform
  • Removable matte-finish color-through shrouds
  • Click Here for Brochure






CATEGORYSPECIFICATION
Model
Jazzy® EVO 613/ Jazzy® EVO 613 Li
Weight Capacity 300 lbs.
Turning Radius
22"
Width
22"
Length
41" w/footplate 35" w/o footplate
Maximum Speed
Up to 5.1 mph
Ground Clearance
3" at motor bracket
Front Wheels 5" solid
Drive Wheels 13" solid
Rear Wheels 5" casters
Drivetrain Two motor, in-line, mid-wheel drive
Braking System Regenerative and electro-mechanical
Suspension Type Active-Trac® (ATX)
Standard Seat Sizes High-back
Black vinyl
16"x16"-18", 18"x18"-20", 20"x18"-20"
Seat-to-Floor Range 19.75"-21.25"
Seat Weight(s)
46 lbs. (16"), 48 lbs (18"), 50 lbs. (20")
Maximum Seat Size 20"-20"
Power Elevating Seat NA
Standard Electronics 40A, PG GC3
Battery Size(s)
(2) 12 volt, U-1 or (1) 25V Lithium-iron phosphate
Battery Weight
(2) U1-23.5 lbs. each; (1)Lithium - 18.5 lbs.
Battery Charger 3.5A, off-board
Per Charge Range
SLA- up to 14 miles (300 lbs.), up to 17.1 miles (200lbs,); Lithium up to 17.6 miles ( 300 lbs.), up to 21 miles (200lbs.)
Weight of Heaviest Piece
94 lbs. (base)
Total Weight 189 lbs. . (SLA); 160.5 (Lithium)
HCPCS Code Group 2: Standard (K0822/K0823)
Warranty Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited (SLA); 3-year limited (Lithium)
Colors Black (matte), White (matte), Red (matte), Iceberg Blue (matte), Robin's Egg Blue (matte), Sugar Plum (matte)

Warranty Information

5-year limited warranty on frame
13 Month limited warranty on electronics
13 Month limited warranty on drive motors
13 Month Warranty SLA Batteries
3 Year Warranty Lithium Battery

Other Details

Brand:
Jazzy
Weight Capacity:
300lbs
Max Speed:
4 mph
Turning Radius:
22"
Base Weight:
94lbs
Seat Weight:
48lbs
Price Range:
$3500 - $4000
Overall Weight:
190lbs
Overall Weight Range:
150lbs - 200lbs
Weight Capacity Range:
200lbs - 300lbs
Seat Size:
16", 18" or 20"
Drive Type:
Center/Mid Wheel Drive
