Description
The Jazzy® Carbon 27X is a power wheelchair that folds vertically thanks to its innovative X-frame design. Weighing in at approximately 27.5 lbs. without the battery, it’s the ideal mobility device for journeys near and far. The strong carbon fiber frame makes it durable, portable, and safe so you can discover your independence and travel worry-free.
A unique lightweight mobility solution.
At first glance, the Jazzy® Carbon 27X may look like our other lightweight power wheelchairs but what stands out is its “X-frame” design, which allows this unit fold vertically, coming together in a compact bundle that is easy to lift, store, and transport.
Advanced carbon fiber technology.
Although the Jazzy® Carbon 27X may only weigh a mere 27.5 lbs. without the battery, you can still expect the same high quality and performance you’ve come to expect from Jazzy®. Rest assured, the durable carbon fiber material will keep you safe throughout your daily activities.
The travel mobility X-factor!
The Jazzy® Carbon 27X continues Pride® Mobility’s legacy of leading the way in travel-ready solutions. Built to keep you moving, this exciting release is the “X-factor” of mobility independence.

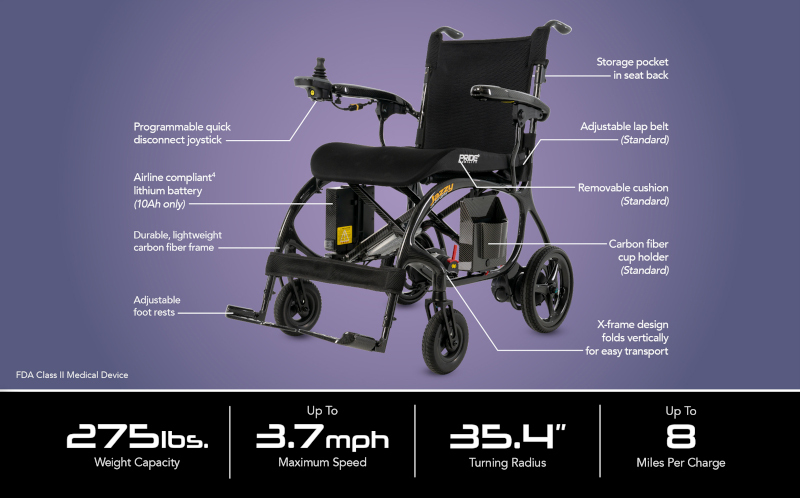

Jazzy® Carbon 27X Features:
- Weighs about 27.5 lbs. without the battery
- 275 lb. weight capacity
- Top speed up to 3.7 mph
- Battery range of up to 8 miles

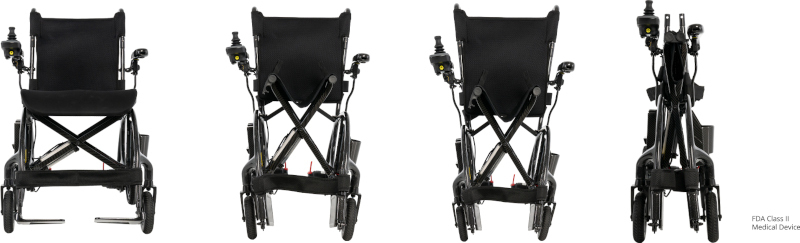

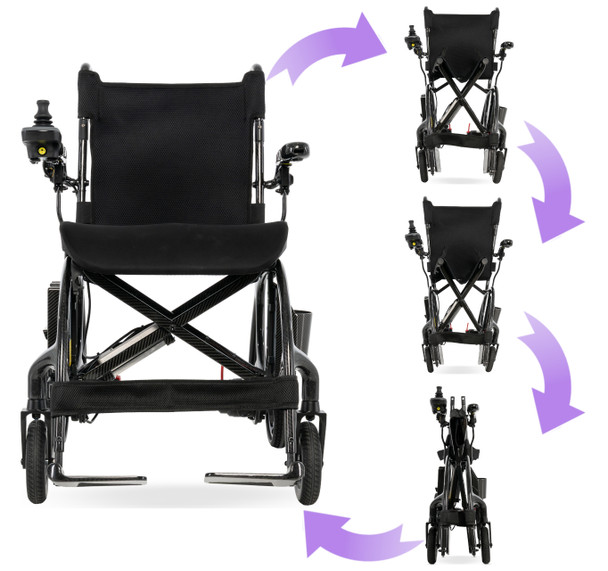

- X-frame design allows the unit to fold flat in vertical position
- Advanced, durable, and lightweight carbon fiber frame
- Folded dimensions: 34” L x 12” W x 30” H
- Flip up, lightweight, carbon fiber arms
- Collapsible back handles
- Adjustable footrests
- Airline-compliant lithium battery** (10 Ah only)
- Storage pocket in seat back
- Cushion and adjustable lap belt (Standard)
- Carbon fiber storage with cup holder (Standard)
- Programmable quick disconnect joystick (Standard)
- K0899 Power Mobility Device, not coded by DME PDAC or does not meet criteria.
- Available Color: Black
- Click Here for Brochure
| Model | Jazzy® Carbon 27X |
| Weight Capacity | 275 lbs. |
| Maximum Speed | Up to 3.7 mph |
| Ground Clearance | 3" |
| Turning Radius | 35.4" |
| Overall Length | 41" |
| Overall Width | 23" |
| Suspension | Full front suspension |
| Front Wheels | 7" |
| Rear Wheels | 10" |
| Range per Charge | Up to 8 miles per charge |
| Product Weight Without Batteries | 27.5 lbs. without batteries |
| Standard Seating | Dimensions: 17” x 17” seat |
| Seat sling with removable cushion | |
| Folded Dimensions | 34" L x 12" W x 30" H |
| Drivetrain/Motor Output | 24V 250W |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | Type: Lithium battery box |
| Size: 12 Ah | |
| Battery Weight | 3.5 lbs. |
| Battery Charger | 2 Amp |
| HCPCS Codes | K0899 Power Mobility Device, not coded by DME PDAC. |
| Warranty | Frame: 5-year |
| Drivetrain: 1-year limited | |
| Electronics: 1-year limited | |
| Battery: 1-year limited |
Details
Weight Capacity: |
275lbs |
Max Speed: |
3.7 mph |
Turning Radius: |
33.4" |
Base Weight: |
27.5lbs |
Price Range: |
$3000 - $3500 |
Overall Weight: |
31lbs |
Seat Size: |
17” x 17” |
Drive Type: |
Rear Wheel Drive |
