Description
With carbon fiber technology, the Jazzy® Carbon Power Wheelchair becomes your greatest travel companion.
- You know Jazzy® for its industry-leading performance and quality. Now let’s talk about portability.
- Jazzy® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.
- Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.
- Weighing in at a stunning 43.6 pounds, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.
When does a folding power chair also put comfort first?
- Jazzy Carbon folds down in just a few quick motions, which makes it easier to transport in cars, planes and trains. But don’t let portability fool you. Jazzy Carbon has tall, terrain-dominating wheels and a front-end suspension system, plus a comfy seat cushion to sustain you through everything your busy day throws at you.
- Maybe you’re taking a weekend trip to visit the grandkids, and they’ve got your Saturday booked with stops at all their favorite places.
- Or maybe you and your pals are taking a once-in-a-lifetime trip to an all-inclusive resort, and you don’t want to miss a single moment of it.
- Jazzy Carbon gives you mobility and control to do it all.
Jazzy® Carbon Features:
- 300 lb. weight capacity
- Removable joystick for transporting with built in USB charger
- Airline compliant lithium battery**
- Front suspension for a smooth ride
- Ultra-lightweight, carbon fiber frame specifically designed for traveling

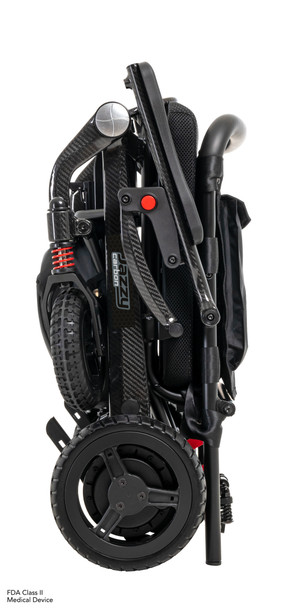

- Compact base easily folds and unfolds for easy transport in a few easy steps
- Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort
- Free-wheel levers to easily disengage the brake allowing this lightweight power chair to be pushed like a manual chair
- Included under-seat storage and adjustable lap belt
- When folded 28.3"x12.2"x24"
- Click Here for Brochure
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy® Carbon
|
| Weight Capacity | 300 lbs. |
| Turning Radius |
24" |
| Maximum Speed |
Up to 3.7 mph |
| Ground Clearance |
2" |
| Overall Length |
37" |
| Overall Width |
24" |
| Seat-to-Ground Height | 19" |
| Seat-to-Foot Platform Height | 14.5" (no adjustment) |
| Front Wheels | 7" |
| Rear Wheels | 8.5" |
| Seat-to-Floor Range with Standard Cushion | 20.75" |
| Seat-to-Floor Range without Cushion | 18.75" |
| Power Elevating Seat | NA |
| Seat Weight(s) | NA |
| Battery Sizes | 24V 12AH (288WH) |
| Suspension | Front |
| Total Weight Without Batteries |
39 lbs. |
| Total Weight With Batteries |
43.6 lbs. |
| Heaviest Piece When Disassembled |
N/A |
| Standard Seating | Material: Black, Foam Dimensions: 17" x 17" |
| Maximum Seat Size | 17" x 17" |
| Per Charge Range | Up to 9.3 miles |
| Drivetrain | 24v/250W Brushless motors |
| Standard Electronics | 35A Brushless Micon |
| HCPCS Codes | Non-coded: K0899 |
| Braking System | Dual Braking System, Regenerative and electromechanical |
| Battery Weight |
4 lbs. |
| Battery Charger | Off-board, 2-amp lithium-ion |
| Weight of Heaviest Piece | NA unit folds and doesn't disassemble |
| Warranty | Frame:1-year limited; Drivetrain: 1-year limited; Electronics: 1year limited; Batteries: 1-year limited |
Details
Weight Capacity: |
300lbs |
Length: |
37" |
Width: |
24" |
Drive Range: |
Up to 9.3 miles |
Max Speed: |
3.7 MPH |
Turning Radius: |
24" |
Heaviest Piece: |
39lbs |
Overall Weight: |
43.6lbs |
Seat Size: |
17" x 17" |
Disassembles / Folds: |
Folds |
Price Range: |
$2500 - $3000 |
Drive Type: |
Rear Wheel Drive |
Warranty
Frame: 1-year limited;
Drivetrain: 1-year limited;
Electronics: 1year limited;
Batteries: 1-year limited
