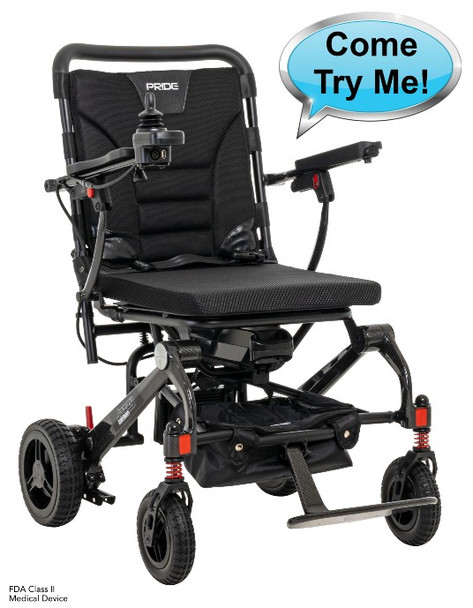

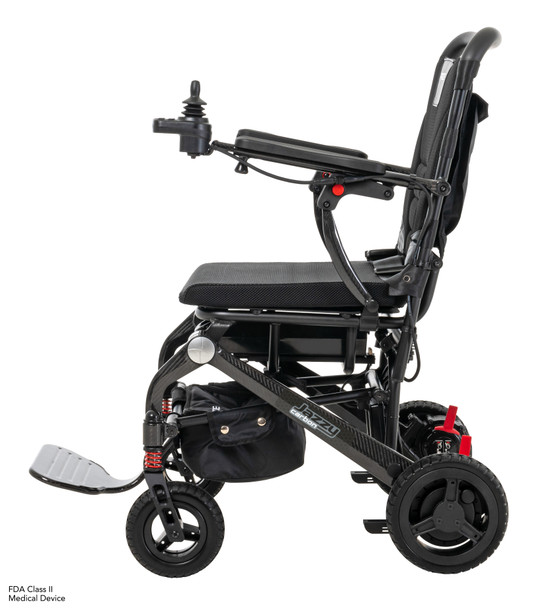

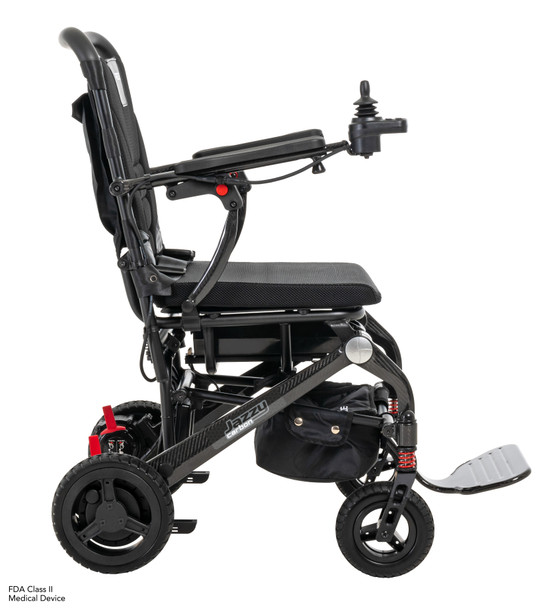

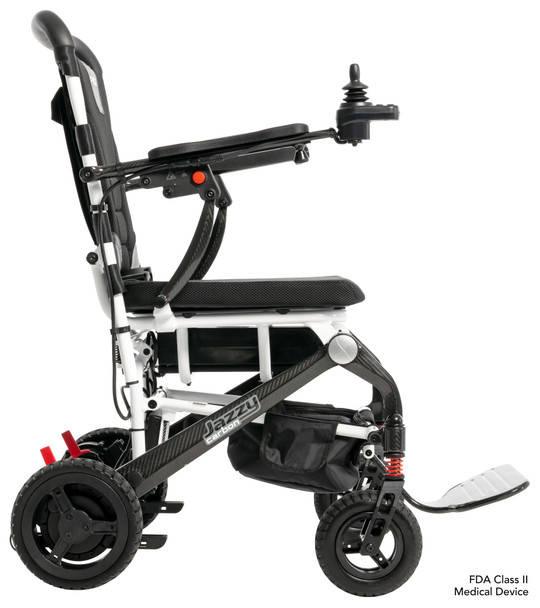

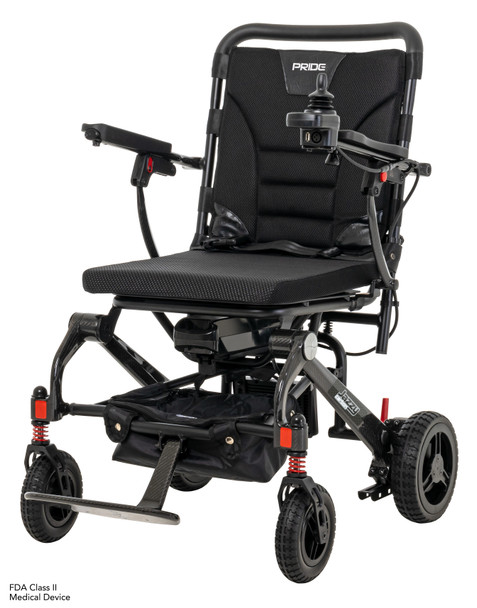

Jazzy Carbon 43 pound Folding Power Chair

With carbon fiber technology, the Jazzy® Carbon Power Wheelchair becomes your greatest travel companion.

• You know Jazzy® for its industry-leading performance and quality. Now let’s talk about portability.
• Jazzy® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.
• Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.
• Weighing in at a stunning 43.6 pounds, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.

When does a folding power chair also put comfort first?

• Jazzy Carbon folds down in just a few quick motions, which makes it easier to transport in cars, planes and trains. But don’t let portability fool you. Jazzy Carbon has tall, terrain-dominating wheels and a front-end suspension system, plus a comfy seat cushion to sustain you through everything your busy day throws at you.
• Maybe you’re taking a weekend trip to visit the grandkids, and they’ve got your Saturday booked with stops at all their favorite places.
• Or maybe you and your pals are taking a once-in-a-lifetime trip to an all-inclusive resort, and you don’t want to miss a single moment of it.
• Jazzy Carbon gives you mobility and control to do it all.





 Jazzy® Carbon Features:

• 300 lb. weight capacity
• Removable joystick for transporting with built in USB charger
• Airline compliant lithium battery**
• Front suspension for a smooth ride
• Ultra-lightweight, carbon fiber frame specifically designed for traveling
• Compact base easily folds and unfolds for easy transport in a few easy steps
• Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort
• Free-wheel levers to easily disengage the brake allowing this lightweight power chair to be pushed like a manual chair
• Included under-seat storage and adjustable lap belt
• When folded 28.3"x12.2"x24"
• Click Here for Brochure



CATEGORY	SPECIFICATION
Model	Jazzy® Carbon
Weight Capacity	300 lbs.
Turning Radius	24"
Maximum Speed	Up to 3.7 mph
Ground Clearance	2"
Overall Length	37"
Overall Width	24"
Seat-to-Ground Height	19"
Seat-to-Foot Platform Height	14.5" (no adjustment)
Front Wheels	7"
Rear Wheels	8.5"
Seat-to-Floor Range with Standard Cushion	20.75"
Seat-to-Floor Range without Cushion	18.75"
Power Elevating Seat	NA
Seat Weight(s)	NA
Battery Sizes	24V 12AH (288WH)
Suspension	Front
Total Weight Without Batteries	39 lbs.
Total Weight With Batteries	43.6 lbs.
Heaviest Piece When Disassembled	N/A
Standard Seating	Material: Black, Foam Dimensions: 17" x 17"
Maximum Seat Size	17" x 17"
Per Charge Range	Up to 9.3 miles
Drivetrain	24v/250W Brushless motors
Standard Electronics	35A Brushless Micon
HCPCS Codes	Non-coded: K0899
Braking System	Dual Braking System, Regenerative and electromechanical
Battery Weight	4 lbs.
Battery Charger	Off-board, 2-amp lithium-ion
Weight of Heaviest Piece	NA unit folds and doesn't disassemble
Warranty	Frame:1-year limited; Drivetrain: 1-year limited; Electronics: 1year limited; Batteries: 1-year limited
